Accueil / Produit / IPPD-1566

Rugged Panel PCs & Monitors

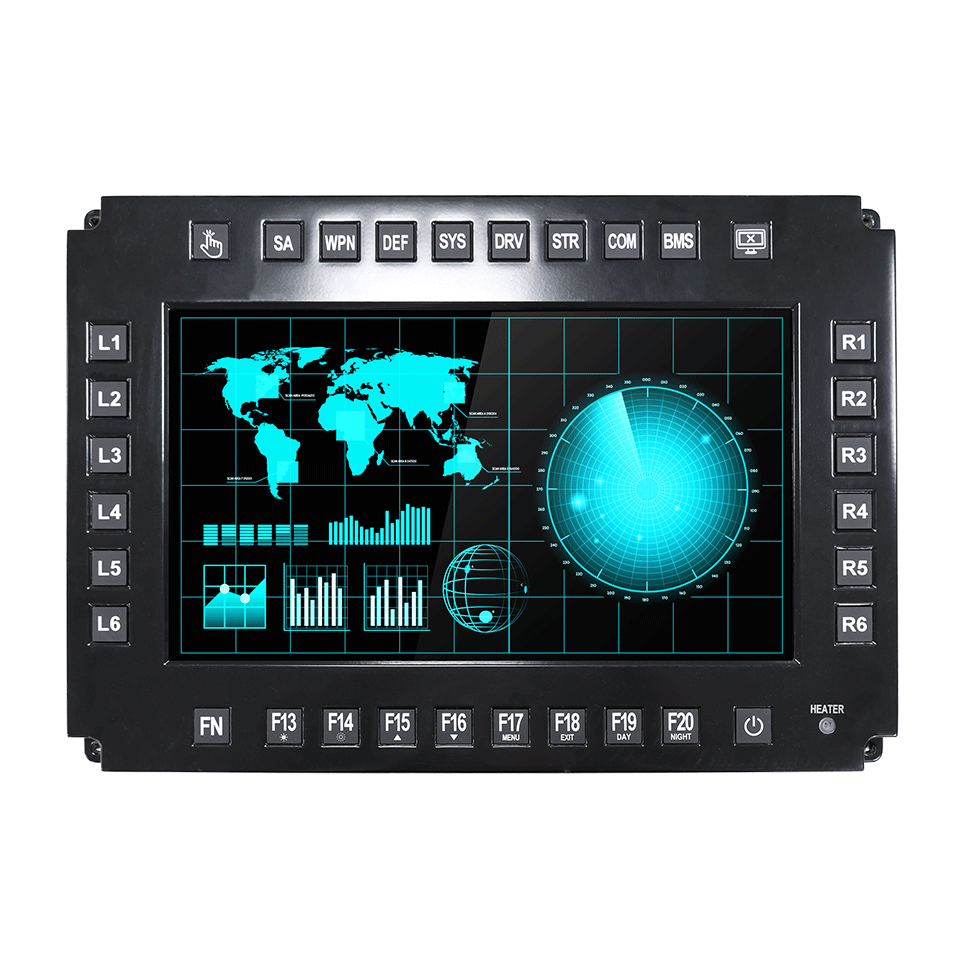

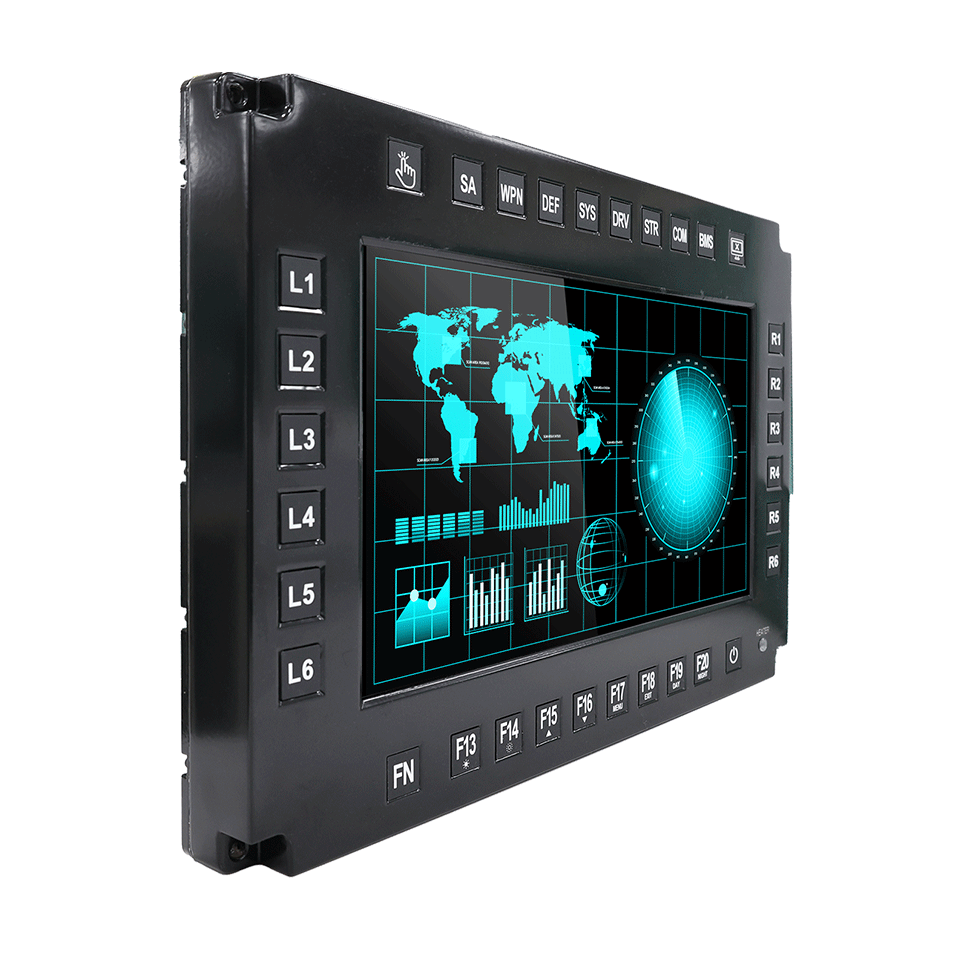

IPPD-1566

15.6” TFT LCD, 1200nits LED Backlight, 1920x1080
  • High Brightness 1200 nits
  • Sunlight Readable
  • LED Backlight
  • Low Power Consumption
  • Wide Temperature (-30 ˚C ~ 70 ˚C)
  • BL MTBF: 100,000 hours
IMPRIMER
DEMANDE COMPARER

Principales caractéristiques

  • Wide Temp

  • Touch Screen

  • Sunlight Readable

  • Front Panel IP65

INTRODUCTION Spécifications TÉLÉCHARGER
The IPPD-1566-8891-STE0-0000 is a 15.6-inch industrial-grade sunlight-readable LCD featuring 1200 nits high brightness and enhanced color saturation, delivering sharp images, crisp text, and lifelike colors. Equipped with Durapixel LED backlight technology, it ensures high reliability and low power consumption, making it ideal for outdoor applications, kiosks, factory automation, military systems, transportation, and gaming.
Model Name IPPD-1566-8891-STE0-0000
 Description 15.6", 1200 nits,1920x1080, PCAP, T3070. LID15C, AD8891D, 32 key, Light Sensor, OCA, Heater, Front IP65, DC12V
Screen Size 15.6"
 Display Area (mm) 344.16(H) x 193.59(V)
 Brightness 1200 cd/m2
 Resolution  1920x1080
 Aspect Ratio 16 : 9
Contrast Ratio  1200 : 1
 Pixel Pitch (mm) 0.17925(H) x 0.17925(V)
 Viewing Angle 170°(H),170°(V)
Input Interface CN1/CN2
 Input Power DC12V
Power Consumption 44W (DC12V 3.6A) w/ Heater
19.2W (DC12V 1.6A) w/o Heater
 IP Level Front IP65
 Dimensions (mm) 460 x 320 x 42.5 mm
Weight (Net) 6.7 kg
 Operating Temperature -40 ˚C ~ 65 ˚C
 Storage Temperature -40 ˚C ~ 75 ˚C

Télécharger
