Home / Product / Industrial Display / Spanpixel™ - Resizing LCDs / 4300-Y

Stretch Digital Display

4300-Y

43” TFT LCD, LED Backlight 2500nits, 3840x720
  • High Brightness 2500nits
  • Sunlight Readable
  • Aspect ratio 16:3
  • LED Backlight
  • LCD Blackening Defect Free (H-Tni 104 ˚C)
  • Wide temperature (-20˚C ~ 60˚C)
  • Low power consumption
  • BL MTBF: 50,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Wide Temp

  • Sunlight Readable

  • Low Power Consumption

INTRODUCTION SPECIFICATION Download

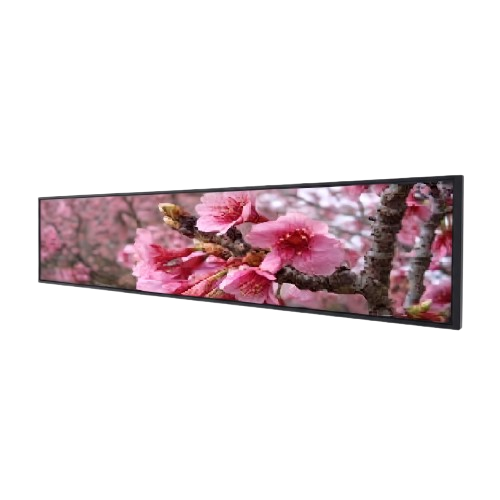

The 4300-Y is a 43 inch color TFT-LCD display with aspect ratio 16:3 and wide resolution 3840x 720. It is Litemax’s Spanpixel series product which designed for high brightness with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and sunlight readable for digital signage, public transportation, exhibition hall, department store, and vending machine.
Model Name SSF4300-Y SSH4300-Y SSD4300-Y
Description 43” TFT LCD, 2500nits LED Backlight, 3840x720
size 43”
Display area (mm) 1073.78(H) x 201.33(V)
Brightness 2500 cd/m²
Resolution 3840x720
Aspect ratio 16 : 3
Contrast ratio 5300 : 1
Pixel pitch (mm) 0.2796(H) x 0.2796 (V)
Pixel per inch (PPI) 91
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 83%
Display colors 1.07G
Response time (Typical) 12ms
Panel Interface V-by-One
Input Interface HDMI,DP
Input power DC 24V
Power consumption 119W 122W
Dimensions (mm) 1112.3x 228.5x 25.5 1114.9x 231.1x 70.8
Bezel size (U/B/L/R) 13.59/13.59/19.26/19.26 mm 14.89/14.88/20.56/20.56 mm
Weight (Net) 5.0 kg 9.5 kg
Mounting   300x75
OSD key 5 Keys (Power Switch, Menu, +, Exit, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -20 ˚C ~ 60 ˚C
Storage temperature -20°C ~ 60°C
