Display Control Board (FHD)

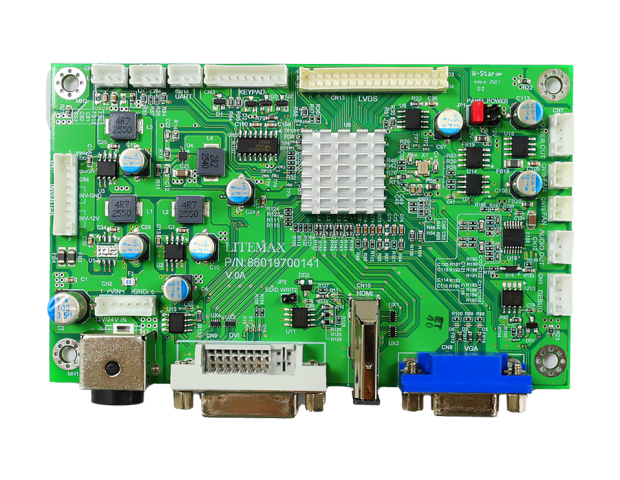

AD9700DPH

Display Control Board, FHD (1920x1080)
  • Max Resolution Up to 1920x1080
  • Analog RGB Input Up To 205MHz
  • Ultra-Reliable DVI-I Input
  • HDMI Input (HDMI1.3)
  • Display Port Input
  • Dual/Single LVDS Interface
  • Support Panel DC 3.3V/5V/12V Output
  • OSD Control
  • PWM/DC Dimming Control for Backlight Driver
  • External RS232 Control (Optional)
  • Input Power DC 24V or 12V (Optional)
  • Display Port Input (support display port 1.2a)
  • Audio in and 3Wx2(4Ω)Audio Out (Optional)
  • External Digital Light Sensor Brightness Control (Optional)
  • External Light Sensor Brightness Control (Optional)
  • Support Output Voltage 12V(1A) and 5V(1A)
PRINT
INQUIRY COMPARE
INTRODUCTION SPECIFICATION Download
AD9700DPH is a high integrated display controller solution for producing real time, top quality digital video and computer graphic images on LCD panel. The AD9700DPH provides an ideal interface between industry standard digital graphics controllers and a wide variety of LCD panel devices. It has a DP and DVI-I, HDMI input.
Model name AD9700DPH
Max. Resolution 1920x1080
Interface Single/Dual LVDS
Input Power DC 12V/24V (Optional)
Panel Power Selection 3.3V, 5V,12V
Video Input (Standard) DVI-I, HDMI, DP
RS232 Control Port Yes (Optional)
Light Sensor Yes (Optional)
Speaker 3W x2
External VR Control Yes (Optional)
IR Yes (Optional)
Dimension 150 x 100 mm
F / R Control Button 4 Key
4 key Power Switch, Menu, Select (+,-)
OSD Menu Brightness, Color, Contrast, Auto Tuning, H/V Position…etc
